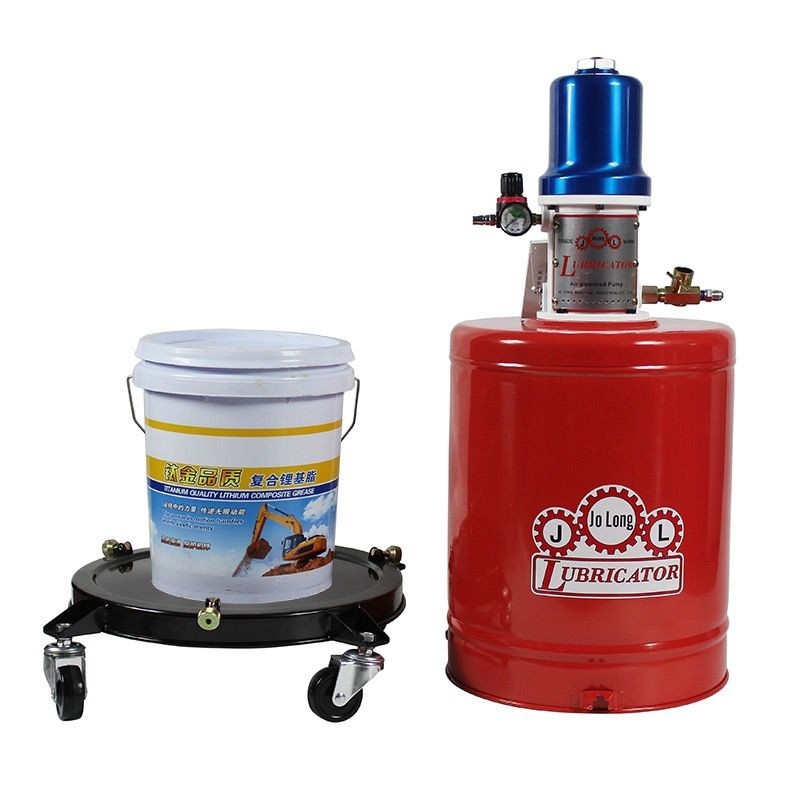

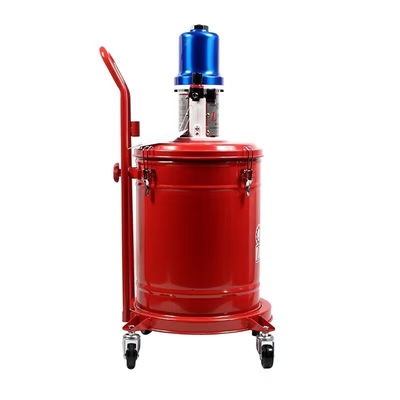

30l High Pressure Air Operation Grease Pump Pneumatic Butter Machine

30l High Pressure Air Operation Grease Pump Pneumatic Butter Machine

Pneumatic Grease Pump Feature:

1. The barrel body is designed with high-grade steel plate, which is stronger and more durable.
2. The inner diameter of the barrel is 350mm, and the inner height of the barrel is 430mm, which can accommodate 5 gallons of barrels of butter from various countries.
3. Applicable to various machinery, vehicles, ships, etc., it is a powerful tool for injecting butter during maintenance and lubrication.
4. The base is equipped with a large ∩ handle and equipped with 4 universal wheels, which is suitable for activities in workplaces with flat ground.

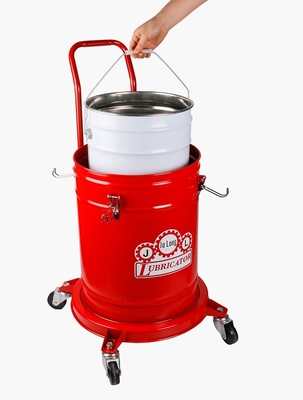

5. It can be directly put into 5 gallon barrels of butter, saving the trouble of frequent filling, and it can also be directly poured into bulk 30 liters
Butter, 1 set for 2 uses.
6. Separate pump, using air compression driving principle to extract fluid liquid, the pump is two independent circulation systems,
Let the air pressure water discharged from the air compressor not come into contact with the butter in the barrel and cause deterioration.

Description of Pneumatic Grease Pump

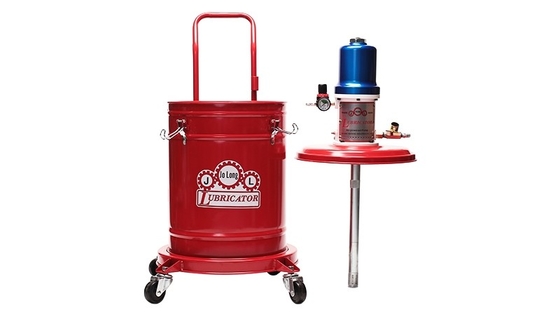

1.Split pump
Independent circulatory system, using air compression driving principle to extract fluid liquid, the pump is two independent circulatory systems so that the air pressure water discharged from the air compressor will not come into contact with the butter in the barrel and cause deterioration

2.Swivel casters
360° rotation anti-slip and wear-resistant, you can use it wherever you want, the universal wheels move quickly, avoid lifting and lifting, and improve work efficiency

3.Pressure regulator
High-precision display, smooth oil discharge; improve efficiency

Pneumatic Grease Pump  Specification:

	A55-G Pneumatic Grease Pump
	application	Automotive Industry, Industrial Utilities, Marine, Mining
	Capacity	30l
	pressure ratio	45:1
	power supply	pneumatic
	pressure	135 ~ 405 bars
	structure	piston pump
	cable length	10 feet
	Export size	1/4"
	certified	Chief Executive
	capacity	20 liters
	air input pressure	4 ~ 9 bar 60 ~ 130 psi
	pressure ratio	45:1
	Grease output pressure	180 ~ 405 bar 2700 ~ 5850 psi
	delivery rate	30 cc/sec

	A65-G Pneumatic Grease Pump
	Capacity	30L
	Air Input Pressure	4~9 bar 60~130
	Pressure Ratio	45:01:00
	Grease Output Pressure	180~405 bar 2700~5850 psi
	Deliver Rate	30 cc/sec
	Hose Length	10 FT
	N.W.	16.6 KGS
	G.W.	21.1 KGS
	CUFT	6.2'
	A45-G Pneumatic Grease Pump
	Capacity	20L
	Air Input Pressure	4~9 bar 60~130
	Pressure Ratio	45:01:00
	Grease Output Pressure	180~405 bar 2700~5850 psi
	Deliver Rate	30 cc/sec
	Hose Length	10 FT
	N.W.	18.5 KGS
	G.W.	21 KGS
	CUFT	5.3'

equipment maintenance
Proper maintenance of the equipment to keep the equipment in good condition is a necessary condition to prolong the service life of the equipment and ensure the high-efficiency operation of the equipment. Equipment maintenance needs to pay attention to the following points:
1. The compressed air should be filtered to prevent the sand and dust in the air from entering the air pump and wearing out the air distribution slider and cylinder and other components.
2. The compressed air used should not exceed 0.8MPA after pressure adjustment, so as to avoid equipment overload and affect the service life of high-pressure hoses.
3. The high-pressure hose is not allowed to be bent strongly or crushed by heavy objects during use, so as to avoid damage to the high-pressure hose.
4. When working and resting, the air source should be disconnected, and the oiling gun should be pulled to drain the oil. Reduce the oil pressure in the equipment to prolong the service life of the high-pressure hose.
5. The oil injection pump needs to be regularly filled with lubricating oil at its air intake. Frequent filling of lubricating oil can effectively improve the service life of the reversing mechanism in the oil injection pump.
6. During the disassembly process, the parts should be handled with care to avoid scratching the surface of the parts and damaging the precision of the disassembled parts.
7. The oil should be kept clean, and impurities such as sand grains and iron filings should not be mixed.
8. Do a good job of cleaning and maintenance at ordinary times, and clean the entire oil circuit system regularly. For example, remove the nozzle of the oil injection gun for cleaning, remove the filter screen in the oil injection pump for cleaning, etc.
