Product Details:
|
| Brand: | Jo Long | Power Supply: | Pneumatic |
|---|---|---|---|
| Deliver Rate: | 30 Cc/sec | Hose Length: | 10 FT |
| Pressure Ratio: | 45:1 | Air Input Pressure: | 4 ~ 9 Strips 60 ~ 130 |
| Color: | Red | ||
| High Light: | 30 cc/sec Air Operated Lubricant Pump,0.85 L/Min Air Operated Lubricant Pump |
||

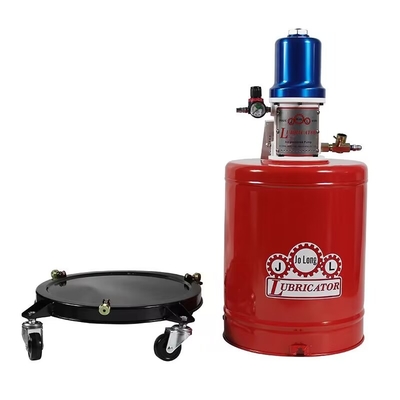

Air Operated Lubricant Pump, 20kg Weight, 0.85 l/min Oil Volume for Industrial Applications
The Air Operated Grease Pump is a high-pressure, air-activated lubricant pump designed to meet the needs of many industrial and commercial applications. Featuring a robust, air-driven design, this convenient and reliable pump is capable of delivering grease or other lubricants in a variety of pressures, with an air inlet pressure of 0.6-0.8 Mpa. Its sturdy construction and lightweight design (20kg) make it easy to use and transport; plus, its bright red color makes it easy to spot in any work area.
The Air Operated Grease Pump is the perfect solution for any project that requires a durable, high-performance lubricant delivery system. Its air-driven design offers superior performance and reliability, making it ideal for use in a wide range of applications. Whether you're looking for an air-activated lubricant pump for your industrial or commercial operation, the Air Operated Grease Pump is the perfect choice.
Pneumatic Grease Pump Specification:
 |
A55-G Pneumatic Grease Pump | |
| application | Automotive Industry, Industrial Utilities, Marine, Mining | |
| pressure ratio | 45:1 | |
| power supply | pneumatic | |
| pressure | 135 ~ 405 bars | |
| structure | piston pump | |
| cable length | 10 feet | |
| Export size | 1/4" | |
| certified | Chief Executive | |
| capacity | 20 liters | |
| air input pressure | 4 ~ 9 bar 60 ~ 130 psi | |
| pressure ratio | 45:1 | |
| Grease output pressure | 180 ~ 405 bar 2700 ~ 5850 psi | |
| delivery rate | 30 cc/sec | |
|

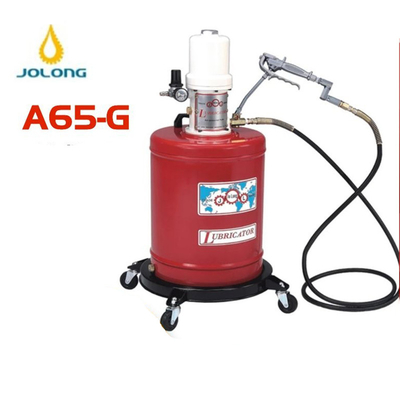

A65-G Pneumatic Grease Pump | |
| Capacity | 20L | |
| Air Input Pressure | 4~9 bar 60~130 | |
| Pressure Ratio | 45:01:00 | |
| Grease Output Pressure | 180~405 bar 2700~5850 psi | |
| Deliver Rate | 30 cc/sec | |
| Hose Length | 10 FT | |
| N.W. | 16.6 KGS | |
| G.W. | 21.1 KGS | |
| CUFT | 6.2' | |
|
A45-G Pneumatic Grease Pump | |
| Capacity | 20L | |
| Air Input Pressure | 4~9 bar 60~130 | |
| Pressure Ratio | 45:01:00 | |
| Grease Output Pressure | 180~405 bar 2700~5850 psi | |
| Deliver Rate | 30 cc/sec | |
| Hose Length | 10 FT | |
| N.W. | 18.5 KGS | |
| G.W. | 21 KGS | |
| CUFT | 5.3' | |
equipment maintenance
Proper maintenance of the equipment to keep the equipment in good condition is a necessary condition to prolong the service life of the equipment and ensure the high-efficiency operation of the equipment. Equipment maintenance needs to pay attention to the following points:
1. The compressed air should be filtered to prevent the sand and dust in the air from entering the air pump and wearing out the air distribution slider and cylinder and other components.
2. The compressed air used should not exceed 0.8MPA after pressure adjustment, so as to avoid equipment overload and affect the service life of high-pressure hoses.
3. The high-pressure hose is not allowed to be bent strongly or crushed by heavy objects during use, so as to avoid damage to the high-pressure hose.
4. When working and resting, the air source should be disconnected, and the oiling gun should be pulled to drain the oil. Reduce the oil pressure in the equipment to prolong the service life of the high-pressure hose.
5. The oil injection pump needs to be regularly filled with lubricating oil at its air intake. Frequent filling of lubricating oil can effectively improve the service life of the reversing mechanism in the oil injection pump.
6. During the disassembly process, the parts should be handled with care to avoid scratching the surface of the parts and damaging the precision of the disassembled parts.
7. The oil should be kept clean, and impurities such as sand grains and iron filings should not be mixed.
8. Do a good job of cleaning and maintenance at ordinary times, and clean the entire oil circuit system regularly. For example, remove the nozzle of the oil injection gun for cleaning, remove the filter screen in the oil injection pump for cleaning, etc.
1. Who are we?
Our headquarter is located in guangzhou, China, started in 2004 .sold to South Asia (20.00%), Middle East (15.00%), Oceania (10.00%), Africa (10.00%), Southeast Asia (10.00%), North America (10.00%), Western Europe (5.00%), East Asia (5.00%), South America (5.00%), Domestic Market (2.00%), Eastern Europe (2.00%), Southern Europe (2.00%), Northern Europe (2.00%), Central America (2.00%). There are about 50-150 people in total in our office.
2. How can we guarantee the quality?
Always final inspection before shipment;
3. What can you buy from us?
Lubricating oil pumps, oil pumps, hydraulic presses, workshop presses, grease guns
4. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF,
Accepted payment currencies: USD, EURO;
Accepted payment methods: T/T, Western Union
Spoken language: English, Chinese
Contact Person: wang
Tel: 86-13207420811
