Product Details:
|
| Type: | Electric Grease Pump | Voltage(V): | DC24 |
|---|---|---|---|
| Color: | Brown , Grey, Yellow | Working Pressure: | 6000psi |
| Power(W): | 600 | Capacity(L): | 20 |
| Oil Output(g/min): | 400 | Application: | Engineering Machinery Engine |
| High Light: | 20L High Performance Electric Pump,6000psi High Performance Electric Pump |
||

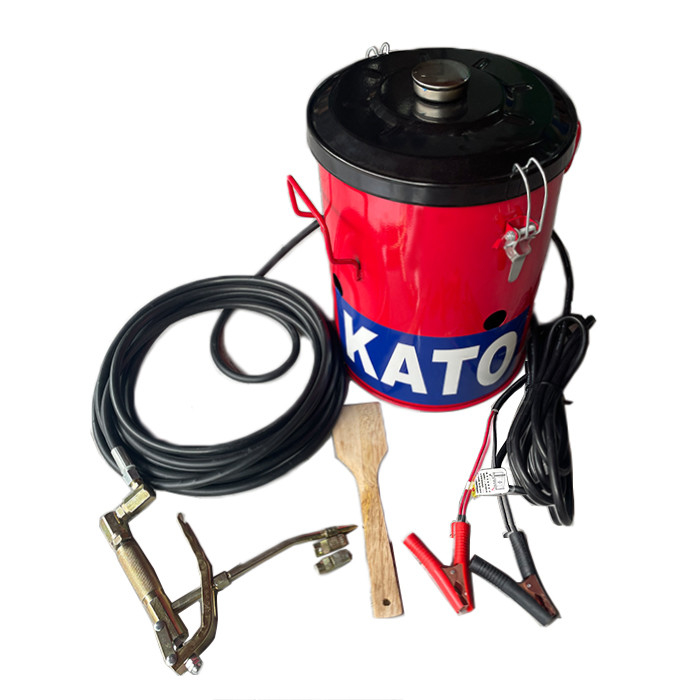

20l High Performance Electric Pump 6000psi Grease Machine Butter Oil
High performance electric pump Detail:
1.High performance electric pump for Lubrication systems available in various motor sizes and components Electric Pump for Lubrication Systems
system has been designed to lubricate heavy duty and large machinery.The system consists of an Electric pump (ELEKTRA) which supplies the lubricant to a Single-line system equipped with CX, CM or CL valves. Each metering device supplies a single point and we can adjust its flow rate with precision.
2.The volumetric grease system distributes oils and greases up to NLGI 2 consistency to lubricate friction points in mining machines or glass industry. The system can have a large number of valves and provide an adjustable amount of lubricant for each point. The system is easy to install.
3.electric pumps have a standard configuration that has a 24 V DC motor. It is possible to supply single-phase motors 115 VAC, 230 VAC 50/60 Hz.
High performance electric pump Specification:
|
Electric Grease pump -24V |
|
|
Operating Voltage |
DC24v |
|
Capacity |
20L |
|
Working pressure |
6000psi |
|
Oil used |
No. 0-3 butter |
|
Oil output |
400g/min |
|
Oil drum inner diameter |
300/450MM |
|
Power |
600W |
High performance electric pump preparation before use:
1. Connect one end of the rubber hose to the oil outlet bolt and the other end to the universal gun to ensure that the seal is tightened to prevent high pressure leakage of grease.
2. Open the barrel cover, confirm that the oil is clean and meet the requirements, then add grease to the oil barrel(do not fill up the oil), cover the barrel cover and fasten the lock.
3. Load the battery clip into the positive and negative poles of the car battery, the red wire is the positive pole, the black wire is the negative pole,
4. Turn on the switch, the motor runs normally, and the filling can be done after the pressure value reaches the filling requirements.
5. After the filling is completed and the power is turned off, the high-pressure oil in the rubber tube should be drained to prolong the service life of the rubber tube.
High performance electric pump Application:
Widely used in oil field, mountain hunting, shipbuilding, agriculture and forestry and other industries, excellent performance, simplified structure and shape, fast battery clip power supply mode, more suitable for field butter filling occasions.
FAQ
Q1: What is your terms of payment?
A1: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2: Can you offer sample before order?
A2: Yes, we can provide samples for evaluation, you need to pay sample cost as well as shipping cost.
Q3: How about your delivery time?
A3: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: I’m looking for some products which is not shown on your website, can you make me the special order?
A4: Our product coverage included but not limited to the items shown on our website. So you can send us your detail requirement and we will check case by case.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact us feel free if you have more questions that you want to know.
